Avtainer 2311 Series Fastener
Description
High quality 2311 series Avdel fasteners designed for joining plywood or glass reinforced plastics to metal framing without damaging the materials or pulling the composition.
Bolt Size
10.0mm (3/8")
Head Form
Low Profile Head
Material
- Pin & Shell made from zinc plated low carbon steel.
- Seal made from natural finish Nylon.
- Locking Slug made from natural finish Polyester Elastomer.
Benefits
- Vibration and moisture resistant
- Suitable for varying hole tolerances
- Prevents cracking and pull through of composite materials
- High shear strength for high strength assembly
- Underhead Santoprene seal provides a water/air tight joint
- Internally locked stem provides a secure, vibration resistant joint
- Low profile head and shell give neat apprearance
- Quick to install
- Easy to inspect for tampering
- TIR Approved

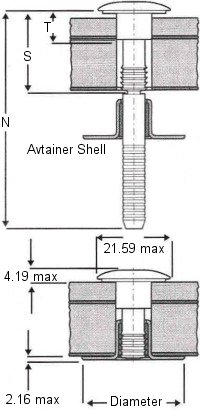

| Grip Range | Dim 'N' | Dim 'S' | Dim 'T' | Part Number |
|---|---|---|---|---|
| 12.70mm - 15.87mm | 56.9mm | 14.3mm | n/a | 2311-1209 |
| 14.27mm - 17.45mm | 56.9mm | 15.9mm | n/a | 2311-1210 |
| 15.87mm - 19.05mm | 58.4mm | 17.5mm | 4.6mm | 2311-1211 |
| 17.45mm - 20.62mm | 60.2mm | 19.0mm | 6.1mm | 2311-1212 |
| 19.05mm - 22.22mm | 61.7mm | 20.6mm | 7.9mm | 2311-1213 |
| 20.62mm - 23.80mm | 63.2mm | 22.2mm | 9.4mm | 2311-1214 |
| 22.22mm - 25.40mm | 64.8mm | 23.8mm | 10.9mm | 2311-1215 |
| 23.80mm - 26.97mm | 66.5mm | 25.4mm | 12.5mm | 2311-1216 |
| 25.40mm - 28.57mm | 75.9mm | 27.0mm | 14.2mm | 2311-1217 |
